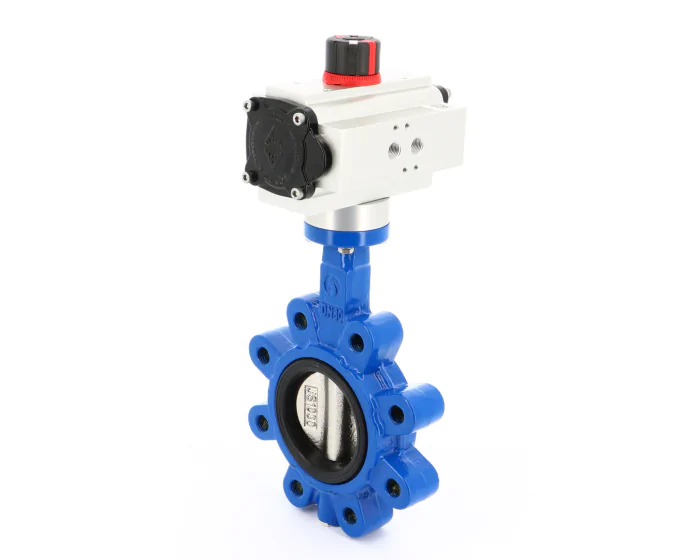

The 1131 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, up to DN300. It is a lug type, PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 420 |
| Adjustable limit screws | Yes |
| Lockable | No |
| ATEX compatible | No |
| DN | DN40 - 1''1/2 |
| Seat | Vulcanised NBR |
| Body material | Cast iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Position | Normally closed |
| PS (bar) | 10 |
| Surface temperature | TX |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category III |
| Fire safe | No |
| Face to Face (mm) | 33.0 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Cast iron Concentric DN40 - 1''1/2 Double acting | 262233015100 | S1003435 |
€189.50
(excl. btw)
|
add to cart |
| Cast iron Concentric DN40 - 1''1/2 Spring return | 262233016101 | S1003436 |
€227.36
(excl. btw)
|
add to cart |
| Cast iron Concentric DN50 - 2'' Double acting | 262234015100 | S1003437 |
€197.71
(excl. btw)
|
add to cart |
| Cast iron Concentric DN50 - 2'' Spring return | 262234016101 | S1003438 |
€235.56
(excl. btw)
|
add to cart |
| Cast iron Concentric DN65 - 2''1/2 Double acting | 262235015101 | S1003439 |
€215.93
(excl. btw)
|
add to cart |
| Cast iron Concentric DN65 - 2''1/2 Spring return | 262235016102 | S1003440 |
€268.71
(excl. btw)
|
add to cart |
| Cast iron Concentric DN80 - 3'' Double acting | 262236015101 | S1003441 |
€232.11
(excl. btw)
|
add to cart |
| Cast iron Concentric DN80 - 3'' Spring return | 262236016102 | S1003442 |
€294.10
(excl. btw)
|
add to cart |
| Cast iron Concentric DN100 - 4'' Spring return | 262237016103 | S1003443 |
€339.39
(excl. btw)
|
add to cart |
| Cast iron Concentric DN125 - 5'' Double acting | 262238015102 | S1003444 |
€302.99
(excl. btw)
|
add to cart |
| Cast iron Concentric DN125 - 5'' Spring return | 262238016104 | S1003445 |
€416.64
(excl. btw)
|
add to cart |
| Cast iron Concentric DN150 - 6'' Spring return | 262239016105 | S1003447 |
€562.26
(excl. btw)
|
add to cart |
| Cast iron Concentric DN200 - 8'' Double acting | 262250015104 | S1003448 |
€547.43
(excl. btw)
|
add to cart |
| Cast iron Concentric DN200 - 8'' Spring return | 262250016106 | S1003449 |
€784.57
(excl. btw)
|
add to cart |
| Cast iron Concentric Spring return DN250 - 10'' | 262251016107 | S1003450 |
€1,595.29
(excl. btw)
|
add to cart |
| Cast iron Concentric Double acting DN300 - 12'' | 262252015106 | S1003451 |
€1,132.77
(excl. btw)
|
add to cart |
| Cast iron Concentric Spring return DN300 - 12'' | 262252016108 | S1003452 |
€2,076.71
(excl. btw)
|
add to cart |
